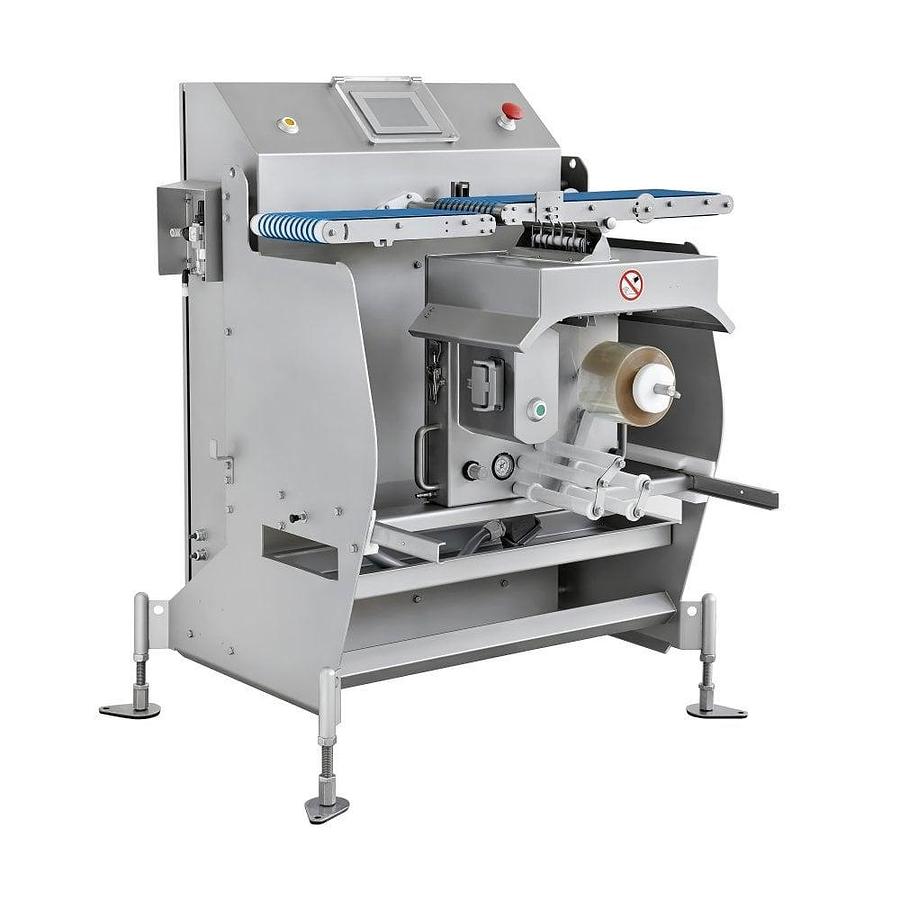

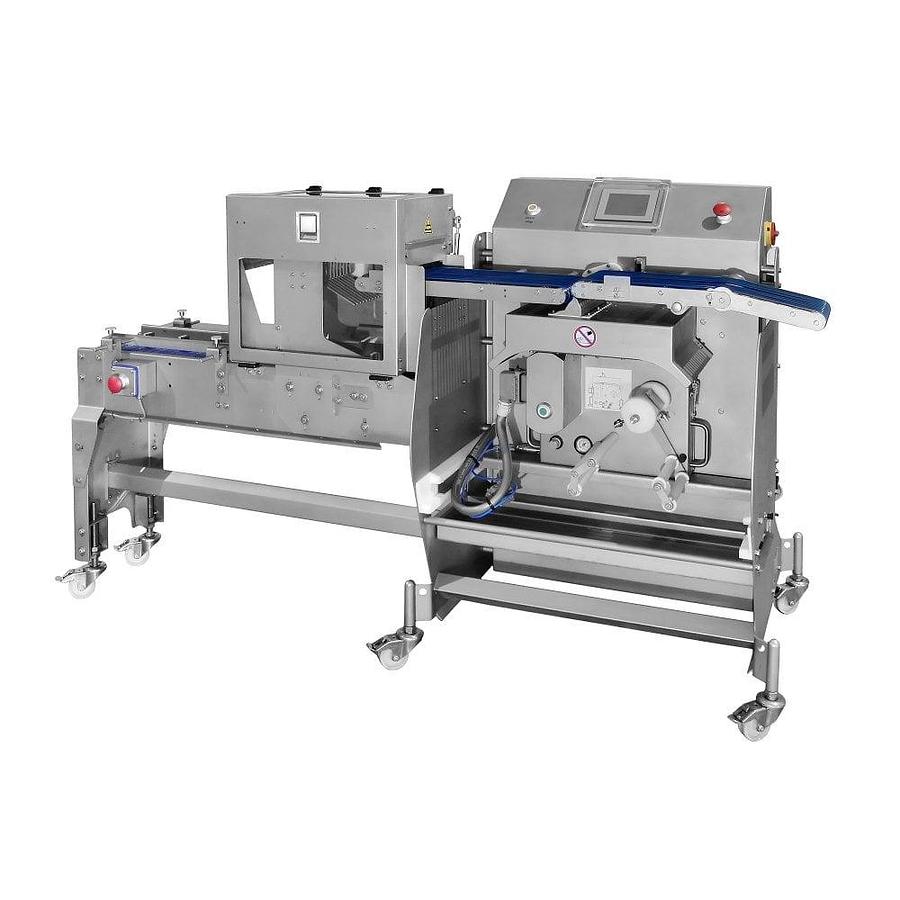

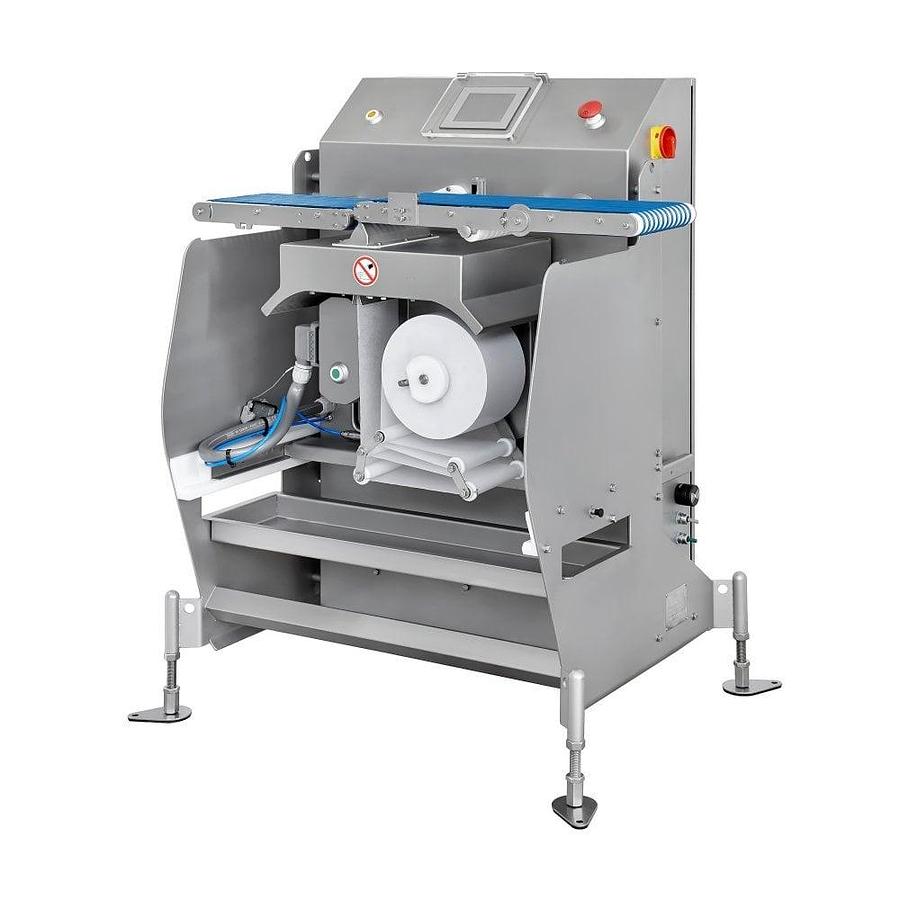

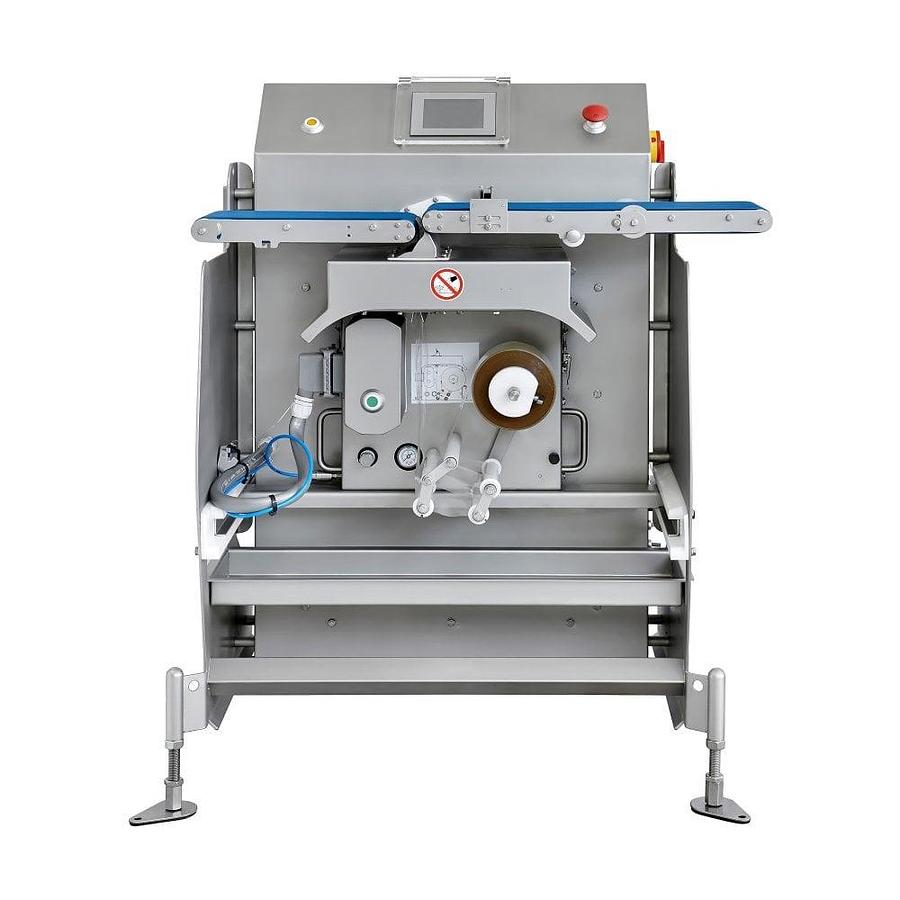

Veserkal Burger Paper Interleaving Dispenser

The Veserkal Interleaving Burger Paper Dispenser is a solution that places interleaver paper on to product. This is an ideal compliment to a REX burger forming line and it is a system which is proven here in the UK.

This paper dispenser is composed of a set of devices that offer a high performance to meet the new demands of production lines. The paper interleaver dispenser receives the product from an input line, where a corded conveyor picks up the product and moves it to the dispensing unit. In this unit, an automatic equipment dispenses fast and accurately the interleaver film or paper under the product and places it on a second corded conveyor that takes it to the output. Thanks to all its features the paper dispenser can adapt to the specific production requirements of each customer.

The Veserkal Interleaving Burger Paper Dispenser is capable of processing up to 120 units per minute dependant on the length of the paper used for your product and can dispense absorbent paper, waxed paper or cellophane film.

This machine is made from AISI 304 stainless steel and runs off a single phase electrical supply. The machine does require a connection to compressed air which needs to produce 6 bar of pressure with clean and dry air. The paper interleaver machine features a touch screen control panel.

This machine speeds up the process of paper cutting and its placement under the product, has fast changing of the type of paper used thanks to it being extremely easy to change the rolls and easy removal of the paper dispensing unit for cleaning operations.

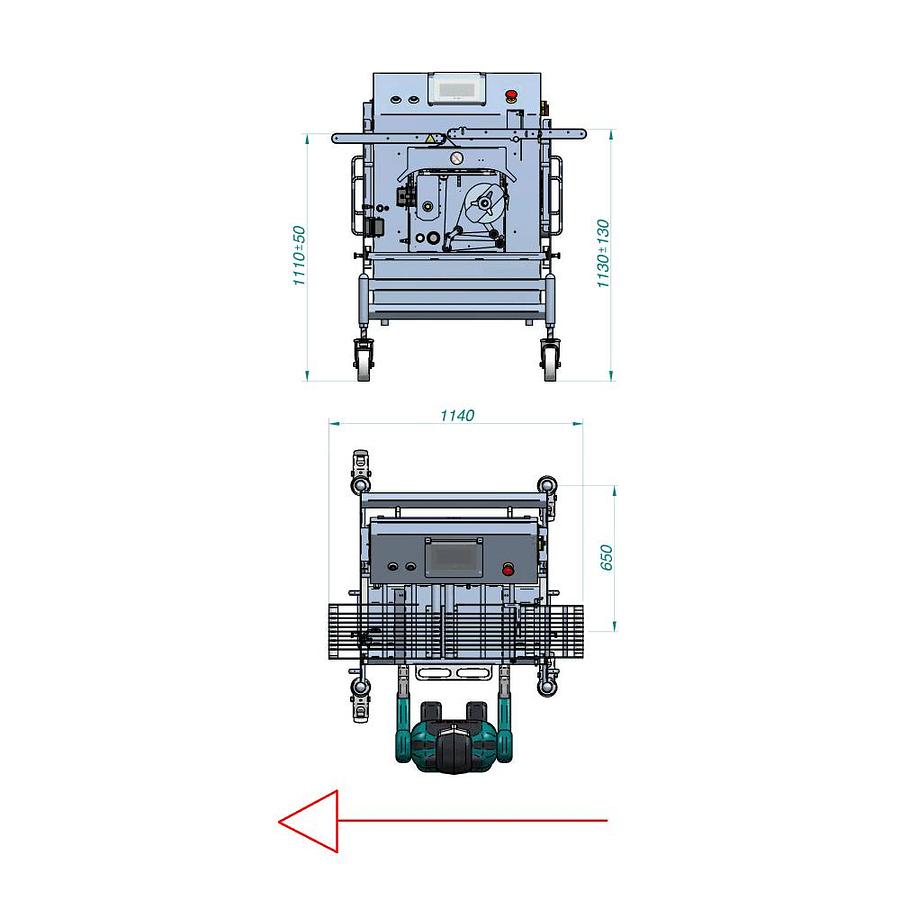

• External Dimensions (wxdxh) - see diagram
• Throughput - 120 units/min (working with paper of 100mm length)
• Dispensable Material - absorbent paper, wax paper, cellophane
• Paper Roll Max Inner Diameter - 76mm
• Paper Roll Max Outer Diameter - 250mm
• Electrics - 1ph 230V 50Hz
• Other products required - Compressed air (6 bar, clean & dry air), router VPN for remote connection
• Options - Stacking kit, Ethernet Kit

For further details please contact our sales team on 0121 5687100. Alternatively please fill in our contact form here and we will contact you.
