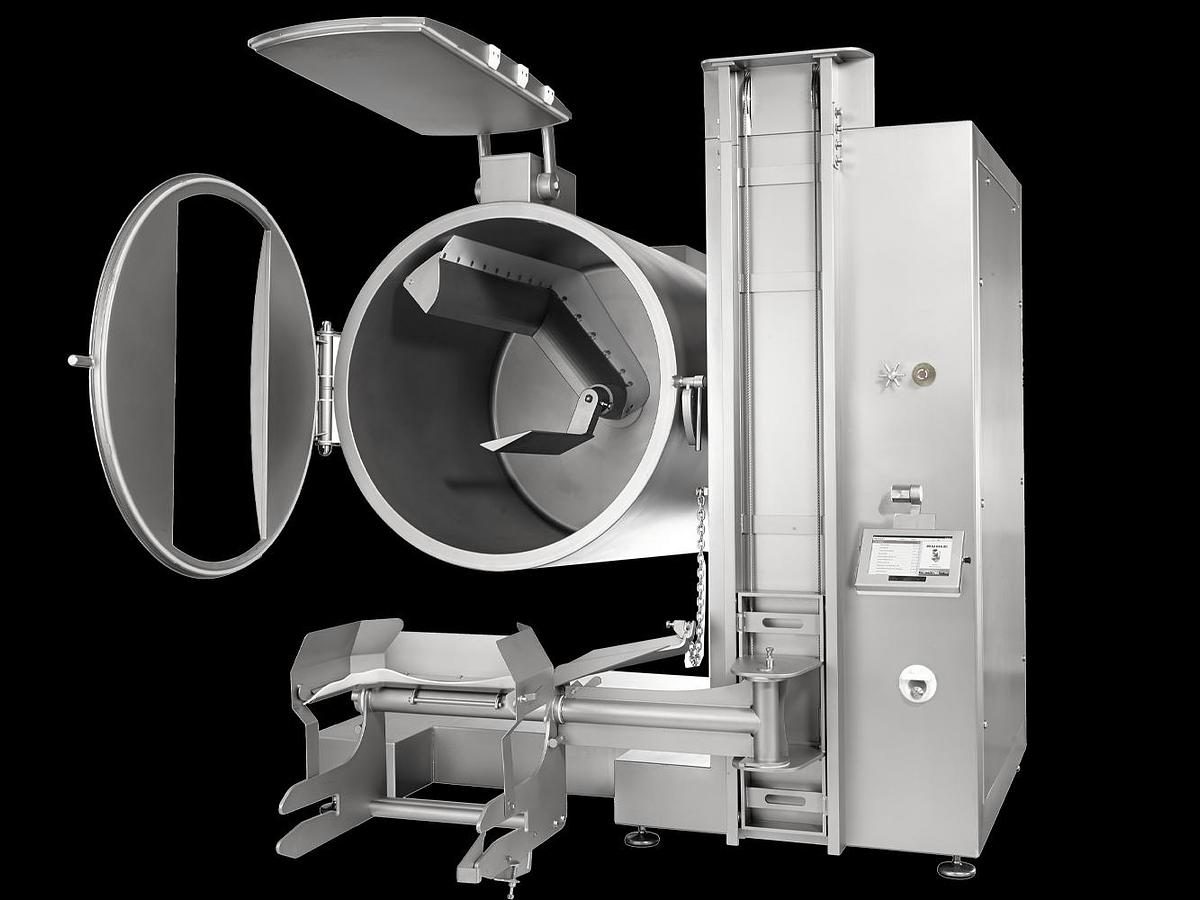

Ruhle MPR 1500 Vacuum Tumbler

Ruhle MPR1500 Vacuum Tumbler

Ruhle are a well known German manufacturer who have been building robust machinery since the 1960's. The MPR range of high tech tumblers stretch from the MPR 150 through to the MPR 1500 models. These machines are made from high quality stainless steel and are built with longevity in mind. All models including the Ruhle MPR 1500 vacuum tumbler come with a direct cooling system as standard.

The Ruhle MPR 1500 vacuum tumbler is very popular for marinating/mixing of meat and also for protein extraction. It's not just meat these machines are designed for as they can be used for a wide range of food products.

Two drum rotating mixing arms

The machine drum can be tilted in different positions. The large–diameter drum enables good rolling of the mixing product. The range of rotational speed from 0 to 25 rpm allows endless variations for each arm. The two–arm system provides air-pocket–free, uniform and very gentle processing of the mixing product.

Efficient scraper

The shape of the main arm is designed for handling and processing delicate products. A rotating scraper removals all of the product from inside the drum. Nothing is left unprocessed, it all stays within the mixture.

Integrated feed system

Automatic, push–button positioning of the drum and drum lid enables integrated feeding with a 200 litre standard trolley. Filling takes only a few seconds and emptying less than a minute. Varying the angle of the drum during the running of the program guarantees the optimum results.

Precise temperature control

The powerful cooling unit inserts the coolant directly into the perfectly insulated drum. This enables very fast temperature regulation and very precise adaptation to all temperature requirements. Optionally, the cooling unit can also be run as a heat pump and supply heat up to 80 °C.

Adjustable vacuum system

Vacuum can be achieved rapidly or slowly depending on the product. Users can select a precise setting within the control range between 0 to 90 % vacuum. A supply pipe installed directly inside the cooling jacket ensures that only chilled air enters the drum. As a result, frequent aeration has no effect on the drum temperature.

Networked tablet PC control

The Ruhle MPR 1500 vacuum tumbler can be controlled by any tablet or smartphone. Recipes can be created intuitively and everyday tasks are easily facilitated by a smaller control interface. Your own data can be saved reliably in a cloud, which can be reloaded at any time as well as the control app.

Ruhle MPR 1500 Vacuum Tumbler

• Machine length: 2485 – 4667 mm
• Machine width: 2494 – 4046 mm
• Machine height: 2651 – 3753 mm
• Machine weight: 2920kg
• Drum size: 1500 litre
• Maximum filling capacity: 900 kg (product dependent)
• Electricity requirements: 3 phase (400V, 14.6kW, 32amp)
